- Outstanding Performance: The 4-stroke OHV engine with 3800r/min can provide a speed of 15km/h to give you a comfortable and labor-saving sailing experience. In addition, the two-bladed nylon propeller and streamlined design reduce water resistance, prevent water plant entanglement, and provide more power during operation.
- Easy to Operate: It adopts a clutch-type gear without shifting gears, and the manual start allows you to operate more smoothly. By controlling the throttle lever, you can freely control the navigation direction and achieve infinite speed change, or you can cruise at a constant speed to enjoy different cruising experiences according to your needs.
- High Safety: The forced air-cooling system helps cool the engine for longer life. Suspension tilt adjustment pins can be used to adjust the boat's sailing attitude at any time to keep it sailing smoothly. The anti-swirl plate reduces swirl, allowing you to sail more safely. The one-button flameout switch can help you to turn it off quickly. At the same time, it can also automatically turn off the machine when it overheats, making it safer for you to use.
- Stern Plate Clamping Bolt: It can firmly fix the outboard motor on your ship and is not easy to slide.
- Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Specification
Color: Black
Material: Aluminum Alloy, Nylon, Rubber
Process: Spray Molding
Engine Type: 4-stroke, OHV
Displacement: 225CC
Compression Ratio: 8.4:1
Cylinder: 1
Max.Output: 4.3kw
Rotation: 3800r/min
Max. Speed: 15km/h/9.32miles/h
Idle Speed: 1800 150rpm
Net Torque: 12.5n.m / 7.7 Lbf.ft, 2500rpm
Gear: Clutch (No Shift Required)
Ignition System: TCI
Cooling System: Forced Air-cooling
Starting System: Manual Recoil
Power Transmission Mode: Gear Transmission Mode
Recommended Fuel: Above 92# Unleaded Gasoline
Engine Oil: SAE10W-30 Four-stroke Oil (Approximately 0.6L Added to the Ccrankcase, Between the Upper and Lower Lines of the Dipstick)
Trim and Tilt System: Manual Tilt
Fuel Consumption: 1.5L/0.4Gal/H
Fuel Tank Capacity: 1-1.5L/0.26-0.4Gal
Gear Oil Capacity: 0.1L/0.03Gal
Bore Stroke: 7*5.8cm/2.76*2.28inch
Standard Shaft Length: 70cm/27.56inch
Adaptive Transom Plate Height: 30-50cm/11.81-19.69inch
Propeller Diameter: 19cm/7.48inch
Joystick Length: 59cm/23.22inch
Oil Filling Pipe Length: 14cm/5.51inch
Product Lower Part Length: 76cm/30inch
Product Total Length: 110cm/43.31inch
Gross Weight: 32.3kg/71.21lbs
Net Weight: 25.6kg/56.44lbs
Engine Size: 46*37*30cm/18.11*14.57*11.81inch
Package Size: 120.5*52.5*40.5cm/47.44*20.67*15.94inch

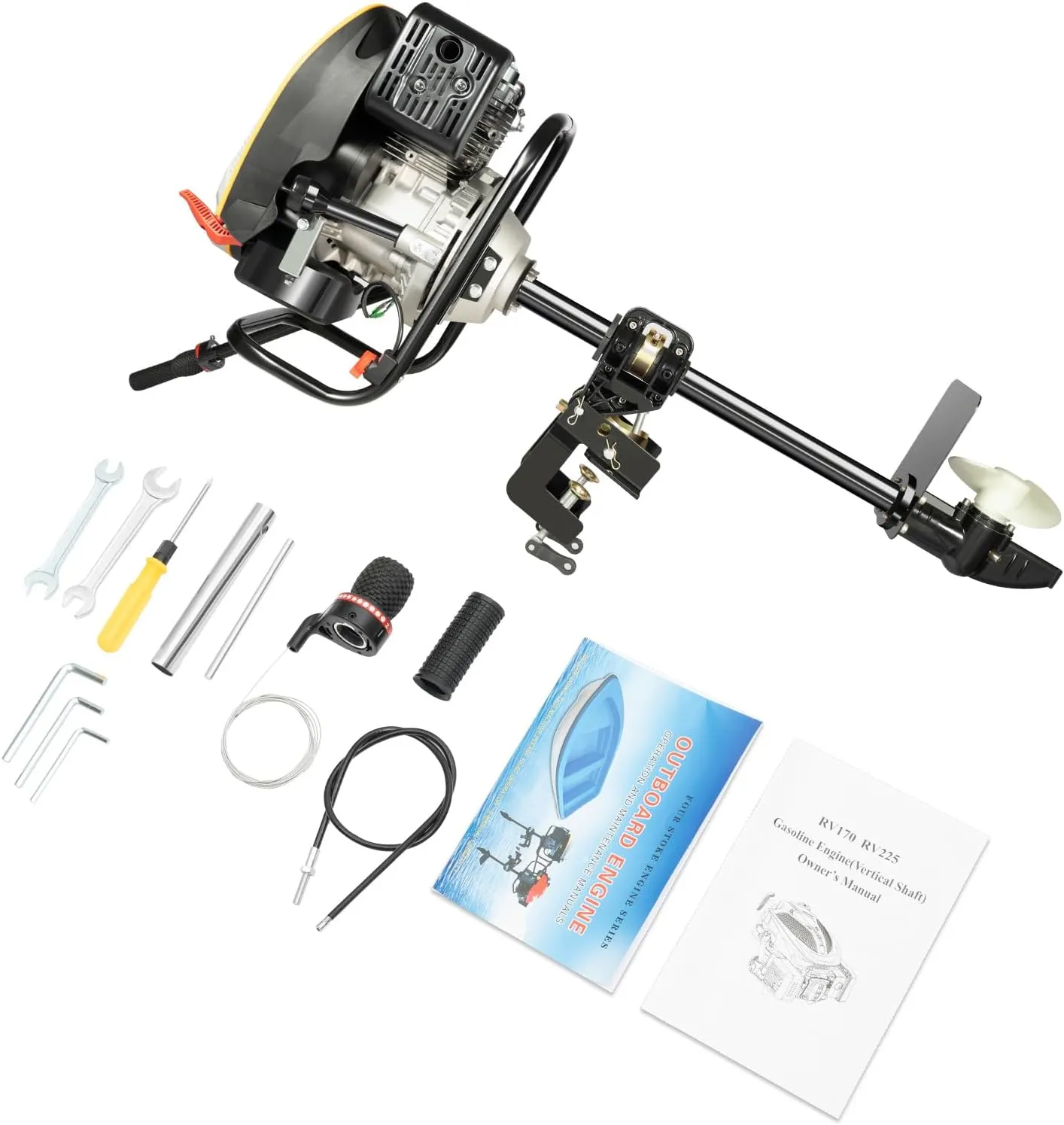

Package Included
1* Outboard Engine
2* English Manuals
All Accessories for Installation
