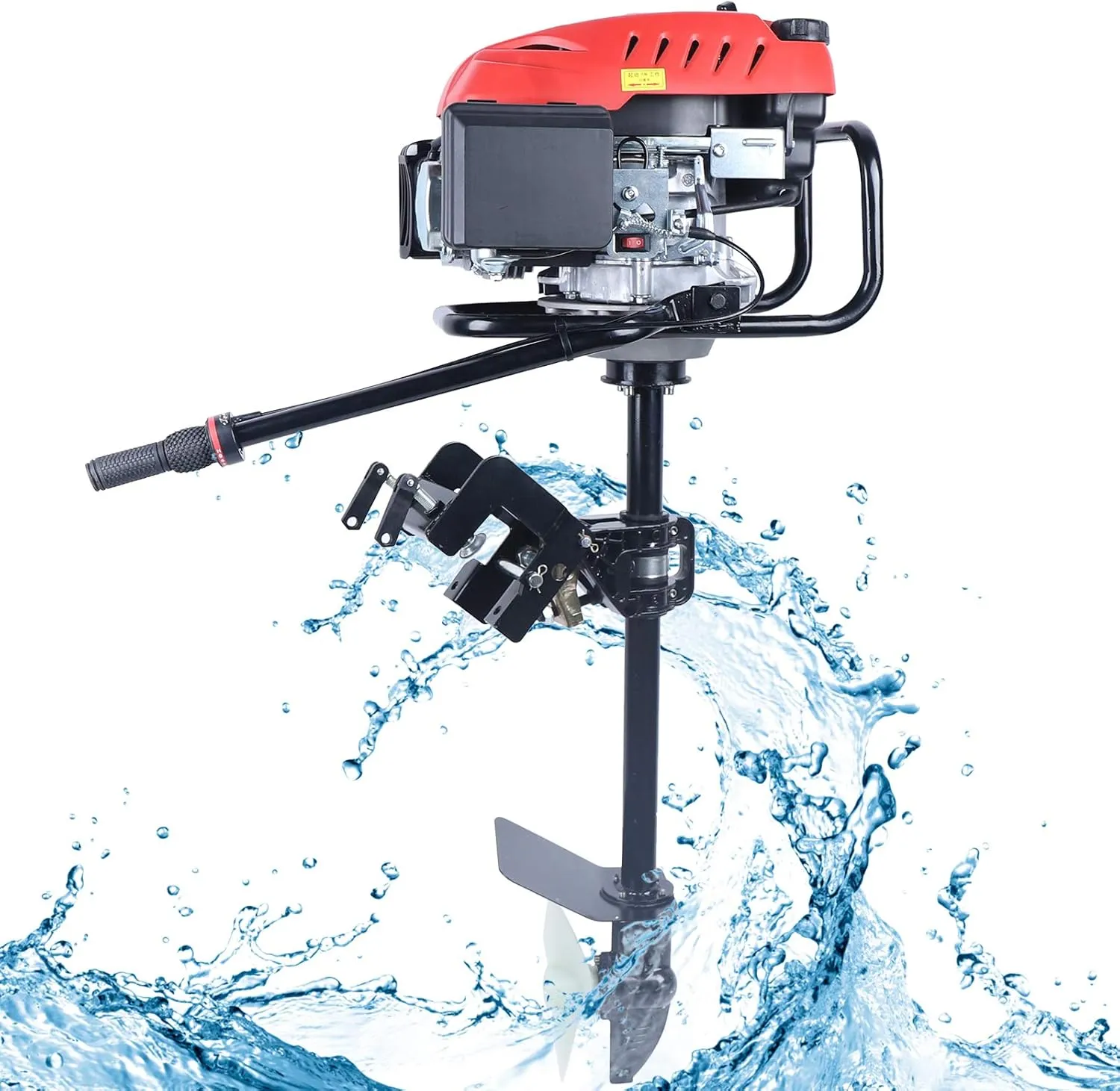

- 【High-quality Materials】 This product is made of high-quality aluminum and PP, which is strong, durable,and not easy to deform.
- 【Safe & Reassuring】 The reliable CDI ignition system can quickly and safely start the motor, and suspension tilt adjustment pins and anti-vortex plates reduce inclination and vortices, ensuring smooth operation. The combination of water-cooling and air-cooling is designed to maintain the optimal temperature, coupled with overheating protection, allowing you to continuously enjoy the fun of the navigation.
- 【Selected Material】 Lightweight and sturdy aluminum alloy, combined with spray painting technology. You can use it with confidence in fresh water and salt water. It is suitable for rubber boats, inflatable boats, fishing boats, sailboats, yachts, canoes, kayaks, rubber boats, aluminum alloy boats, etc. with a stern height of 16.53 inches or less, assisting aquaculture, water transportation, net fishing, luring, outboard backup, outings, and river cleaning/maintenance.
- 【Details】 Locking Buckle: The locking buckle the anechoic cover allows you to easily open the casing to check the internal motor. Tail Plate Clamping Bolt: It can firmly fix the outboard motor on your ship and is not easy to slide. Flameout Button: It allows you to immediately stop the machine running and avoid danger in case of an emergency.
- 【Lightweight & Fuel-efficient】 As an outboard motor, it is relatively small(35.4*15*7in) and lightweight(21.4lbs), making it very suitable for small ships and people who frequently navigate short distances. An efficient carburetor burns fuel more fully, with a fuel consumption rate of 0.3 gal/h not only saving fuel but also reducing expenses.
Specifications
Model: RV170
Color: Black, Red
Material: Aluminum
Spark Plug Material: Titanium Alloy
Surface Treatment: Plastic Painting
Recommended Uses for Product: For Fishing Boats
Gasoline Engine Type: Single Cylinder Horizontal, Four-stroke, OHV
Recommended Fuel: 92# or Above Gasoline
Recommended Lubricant: 4-stroke Lubricant Oil
Hypoid Gear Oil: SAE90
Starting Mode: Pull Start
Transmission Mode: Spline Transmission
Cooling System: Forced Air Cooling
Ignition System: Capacitance Discharge Type
Power Output Mode: Vertical Shaft Output
Power: 3.2KW
Reduction Ratio: 22:15
Displacement: 170cc
Exhaust Volume: 173.3ml/5.86oz
Bore*Stroke: 70*45mm/2.75*1.77inch
Theoretical Power: 3.2kw/3600r/min
Recommended Power: 2.4kw/3000r/min
Torque: 9.0N.m/2, 500r/min
Fuel Consumption: 395g/kw.h
Spark Plug Gap: 0.7-0.8mm/0.027-0.03inch
Carburetor Idle Speed: 1900±100r/min
Valve Clearance (Cold Engine): Intake: 0.15±0.02mm; Exhaust: 0.20±0.02mm
Suspension Height: Suspension Point to Propeller 60-70-80cm/23.6-27.56-31.5inch
Oil Tank Capacity: About 1.2L/40.57oz
Applicable Temperature: 80-110℃/176-230℉
Applicable Boat Length: 3-7m/9.8-22.9ft
Flat Water Load-bearing Capacity: 1T/2204lbs
Heavy Current Load-bearing Capacity: 750kg/1653lbs
Max. Speed: 15km/h
Min. Speed: 8km/h
Product Size: 39.5*34.8*115cm/15.55*13.7*45.27inch
Package Size: 116*38*48cm/45.67*14.96*18.89inch
Net Weight: 26kg/57.3lbs
Gross Weight: 30kg/66.13lbs
Package Included
1* Outboard Engine
1* Throttle Main Line
1Set* Tools
1* Manual
